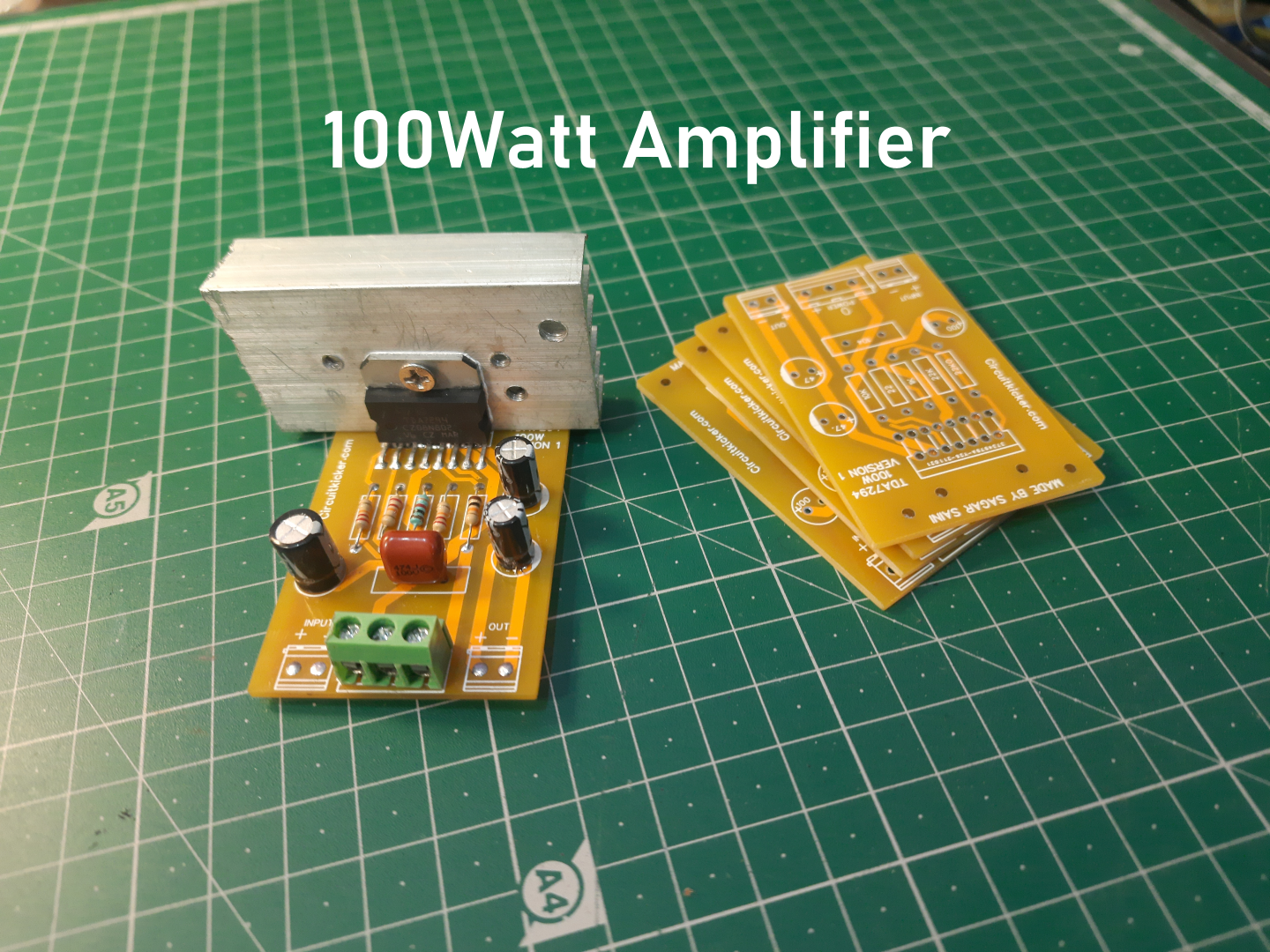

100Watt Audio Amplifier Using TDA7294

Hello guys, today in this tutorial we will know, how to make a high bass amplifier circuit using Tda7294 Ic. This is 100watt Hi-Fi sound Ic. So, a very high power can be drawn using this amplifier circuit. This amplifier works on dual power supply that’s why we need a center tapped 12-0-12volts 5 Ampere transformer to get better sound quality. Today here, we will design only one channel (mono-channel) and using the same circuit it can be turned in stereo.

This is a class AB amplifier, so we need a good heat dissipator and a stable input power supply (High quality DC – using filter circuit).

Suitable 100w subwoofer

All soldering tools.

1) High input voltage range (+-40v)

2) Muting/ standby function’

3) No switch on/off noise

4) Short circuit protection

5) Thermal shutdown

6) Low noise

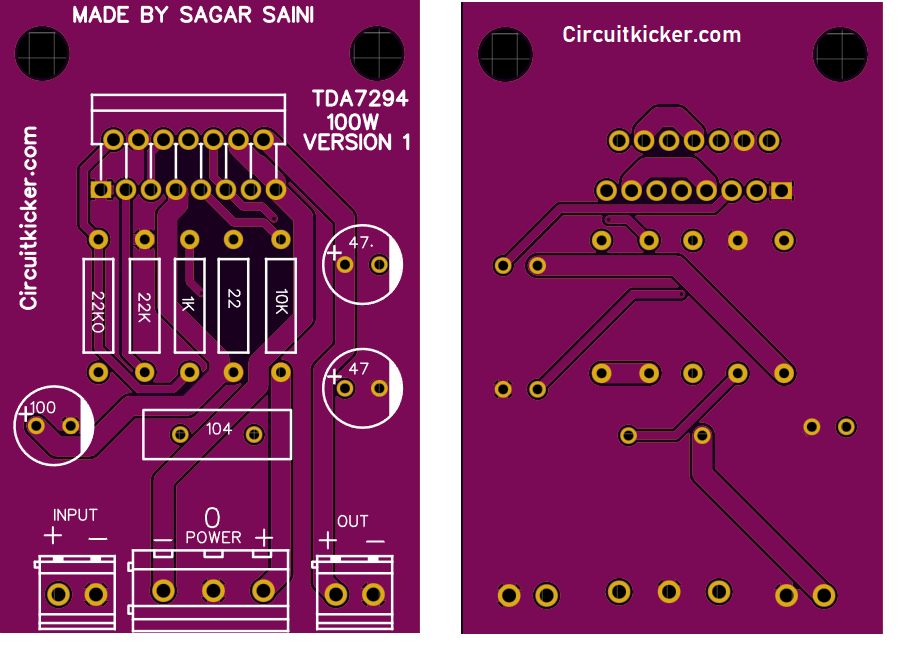

In last we will make a fully working PCB and order it from our sponsor JLCPCB. JLCPCB is China’s Top PCB manufacturing company (just $2 for 5 Pcb).

1 TDA7294 ic x 1

2) 1K resistor x1

3) 22k resistor x 3

4) 10k resistor x1

5) 47uF 50-volt capacitor x 2

6) 100uf 50volt capacitor x1

Circuit is same as given in the datasheet, after changing component placement the simplifier circuit diagram is shown below.

The circuit is re-drawn by us, in a simple understandable format.

Circuit is fully completed and we need a good big heat sink with fan with this amplifier, also if using the circuit in stereo or bridge mode, add a layer of insulated mica sheet behind these IC’s. So that we can prevent aluminium heat sink to short circuit.

Also, in bridge mode use 8ohm speaker for best output and use 24-0-24 power supply.

Also, the original version of this IC have, thermal, short circuit and overheat protection features.

Download all the important material, circuit diagrams, schematics, PCB Gerber FROM HERE.

For now, we are just working on a single 100w channel but in future we will also write about dual channel, stereo and mono channel. We will make a separate PCB for that and order it from JLCPCB.

Please follow us on Instagram to stay updated with new projects (id:Sagar_saini_7294).

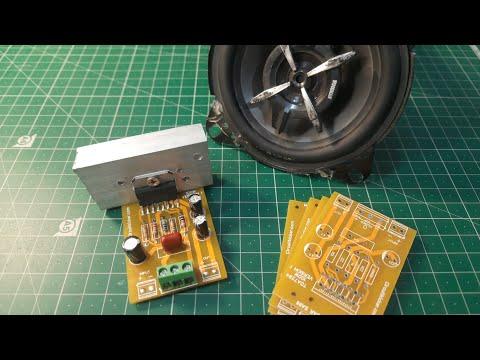

This is the short video about, how our 100W TDA7294 Mono amplifier is working.

You can feel the bass and audio quality of this mono channel amplifier through this video.
