10$ - 15min - Pan Head for Action Cam

A light, simple Pan Head for an Action Cam, around 10 bucks, 15min of work? Can be done. Let's do it

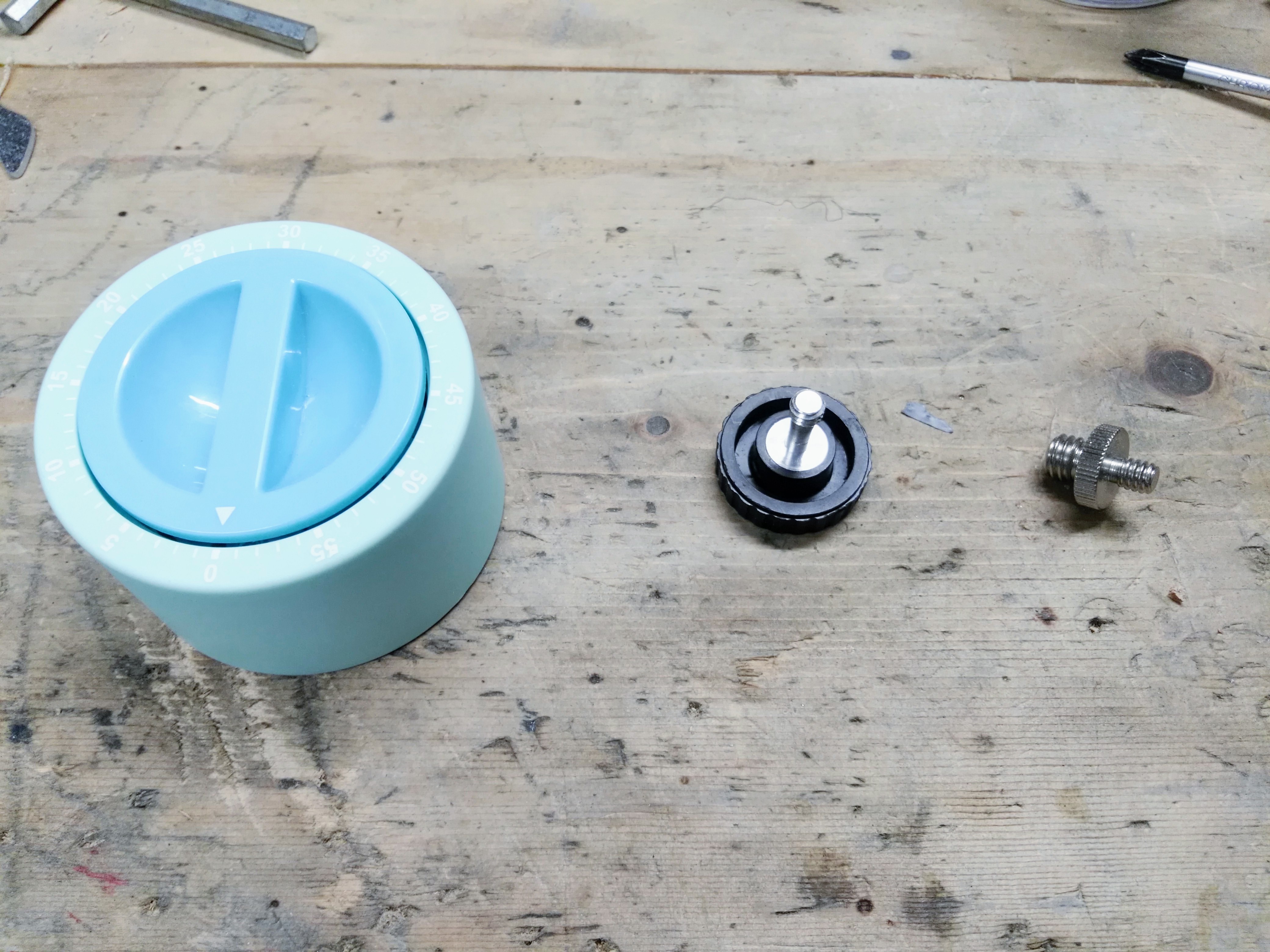

• Kitchen timer: cheapest and I commend, chose the simplest one. Cylinder shape is the best. Search it in cheap Chinese shops. Check that you can open it (screws, pull the rotative part). This seems to be perfect but "expensive"... Timer
• 3/8" to1/4" double male adapter on Amazon
• 1/4" screw camera mount (female/male) for photography on Amazon

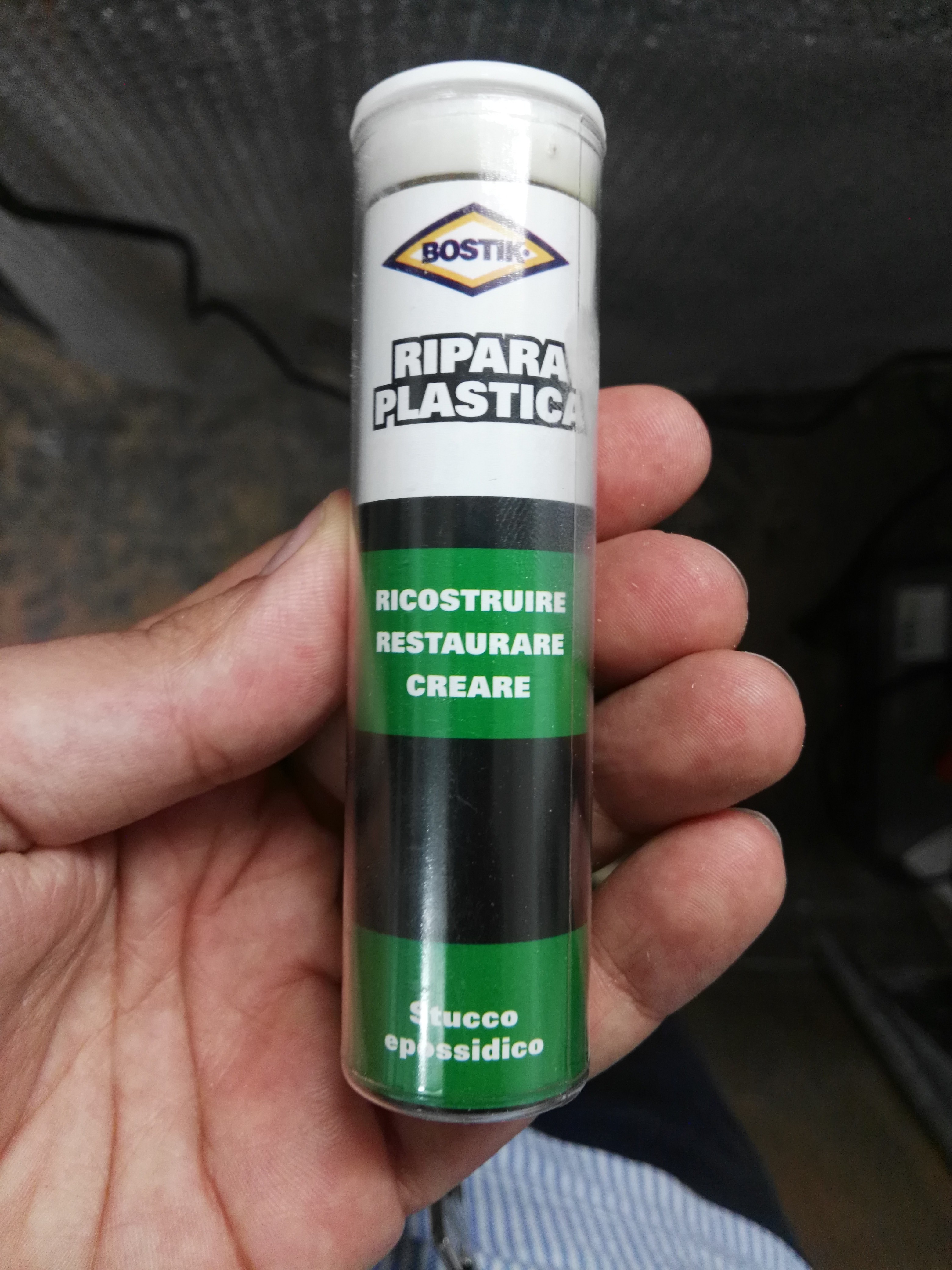

• Epossidic Plastic Paste or HOT GLUE or other Glue...

• Vise (optional, helps)
• Screwdriver
• Drill
• Mini drill (optional)
• Metal cutter disc for dremel (optional)
• Metal saw
• Metal rasp

1. Pull the rotative part.

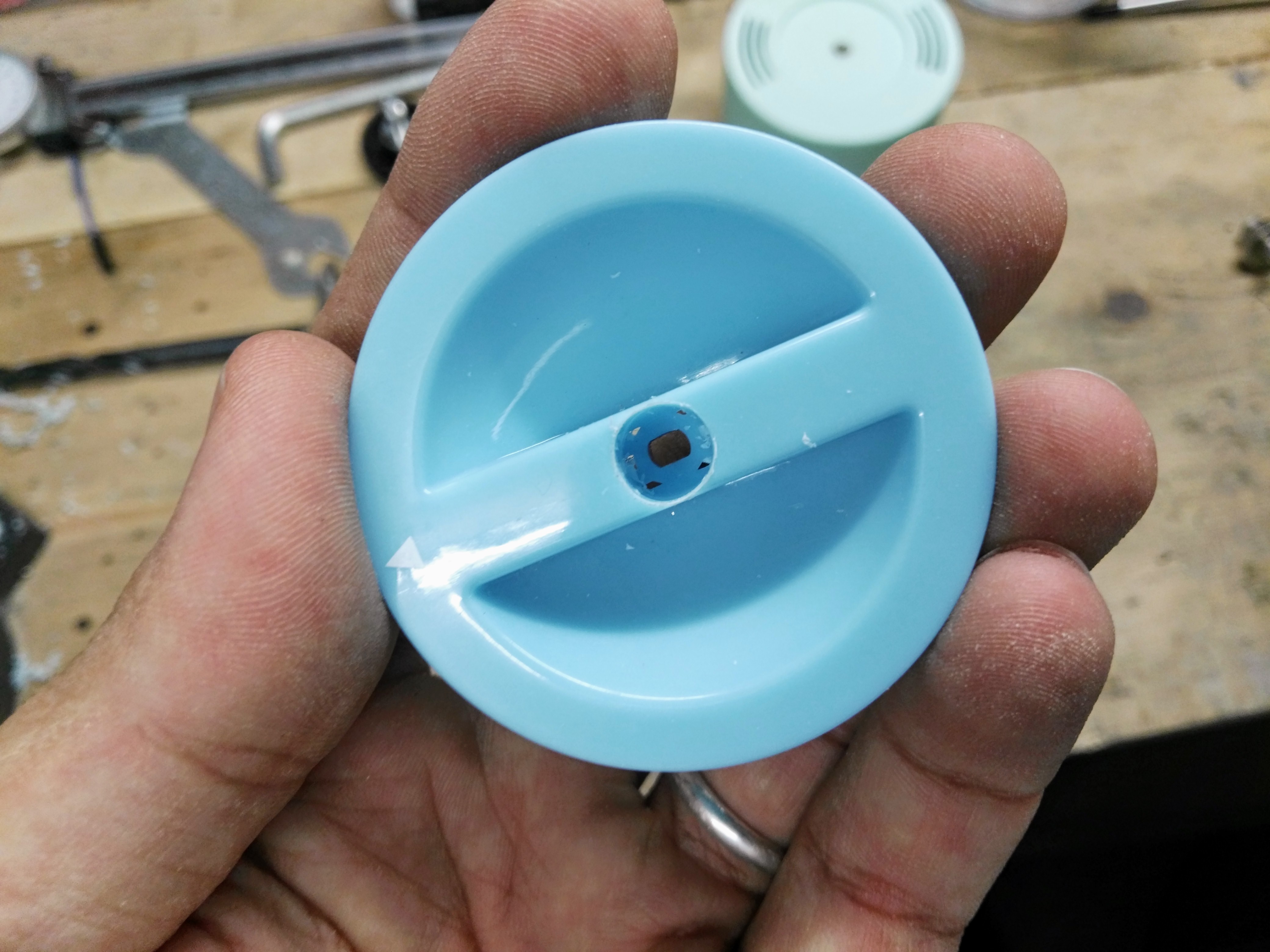

2. From the inside, in the centre do a small hole with the drill.
3. Make it larger as you can, to fit with the largest diameter of the double adapter.(if you can, look next step).
4. The depth... necessary to insert all the male part of the adapter.

Now take 1/4" screw :

1. Cut the spindle.
2. Now with the handsaw cut gradually the base of the spindle.
3. If you cut with dremel stay at the low rotation, make a pause or you will fuse the plastic part.
4. Make all at the same level with a rasp.

In my timer I could not do a 9mm hole, otherwise, I would lose the insertion of the mechanism. So I did a 8mm hole and reduced the diameter of the spindle:

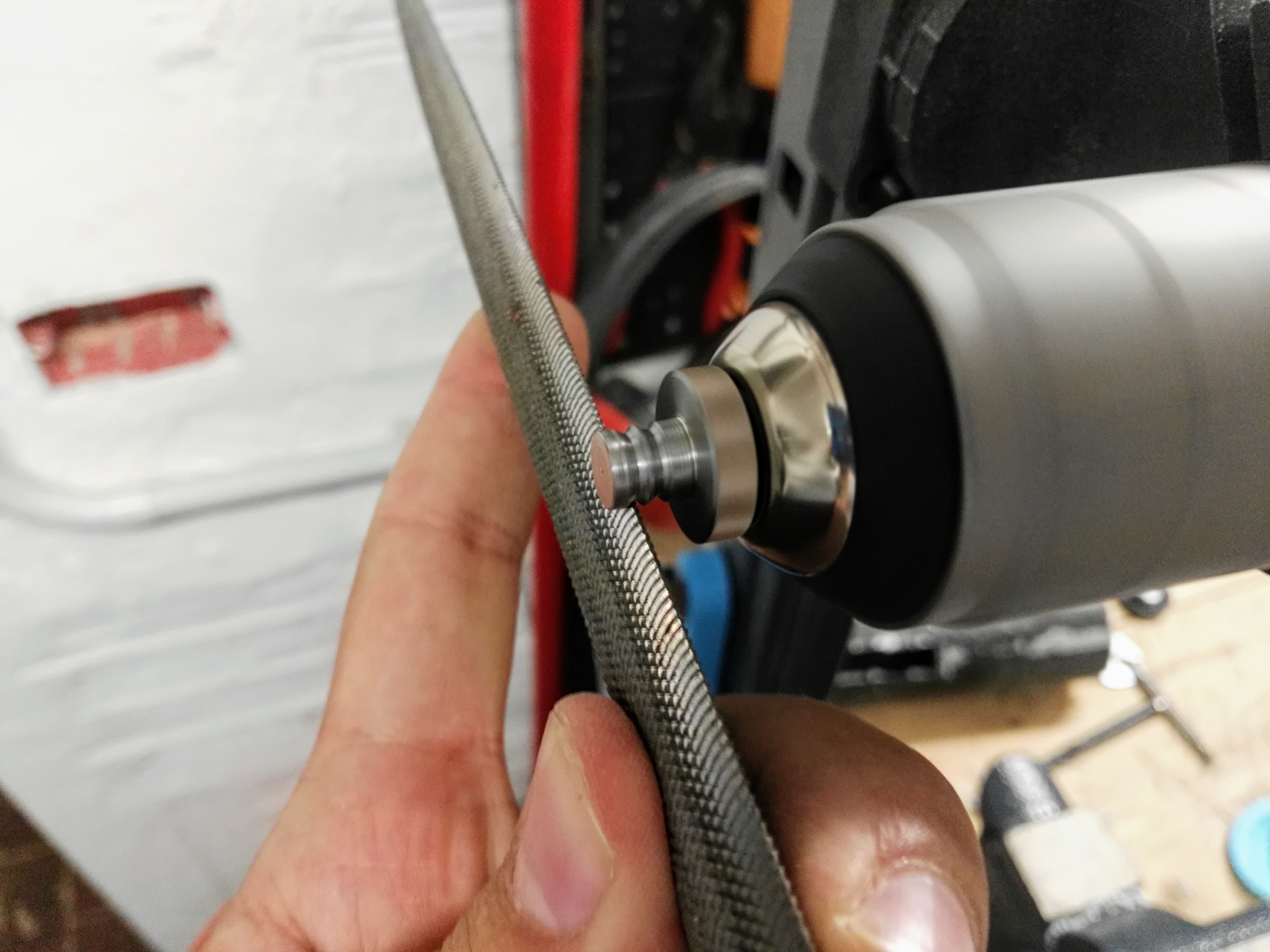

1. Put s wired drill in the wise (is better).
2. Insert the small part inside the drill, lock it.
3. Switch on the drill and lock it on.
4. Take a metal rasp and lathe the spindle.
5. With the rasp's border do some incision (for the glue).

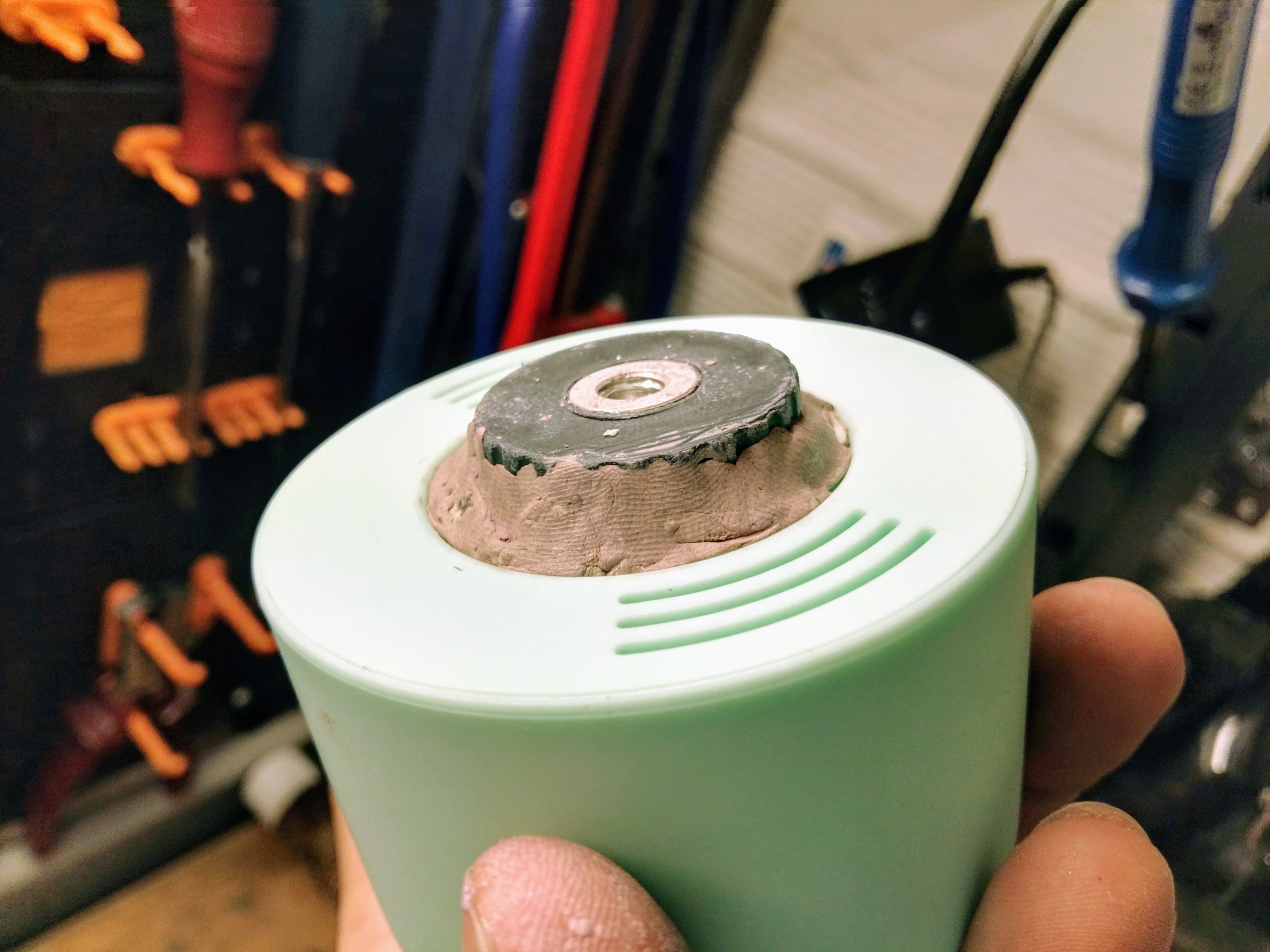

Now you can use the Hot Glue or the Epossidic Plastic Paste, in every case is simple:

1. Apply the Glue / the Paste in the top hole
2. Apply some Paste around the spindle.
3. Insert the spindle.
4. Apply the glue/paste on the base.
5. Apply the screw.
6. Make a border of paste/glue around the side of the screw.
7. WAIT.

Is Done:

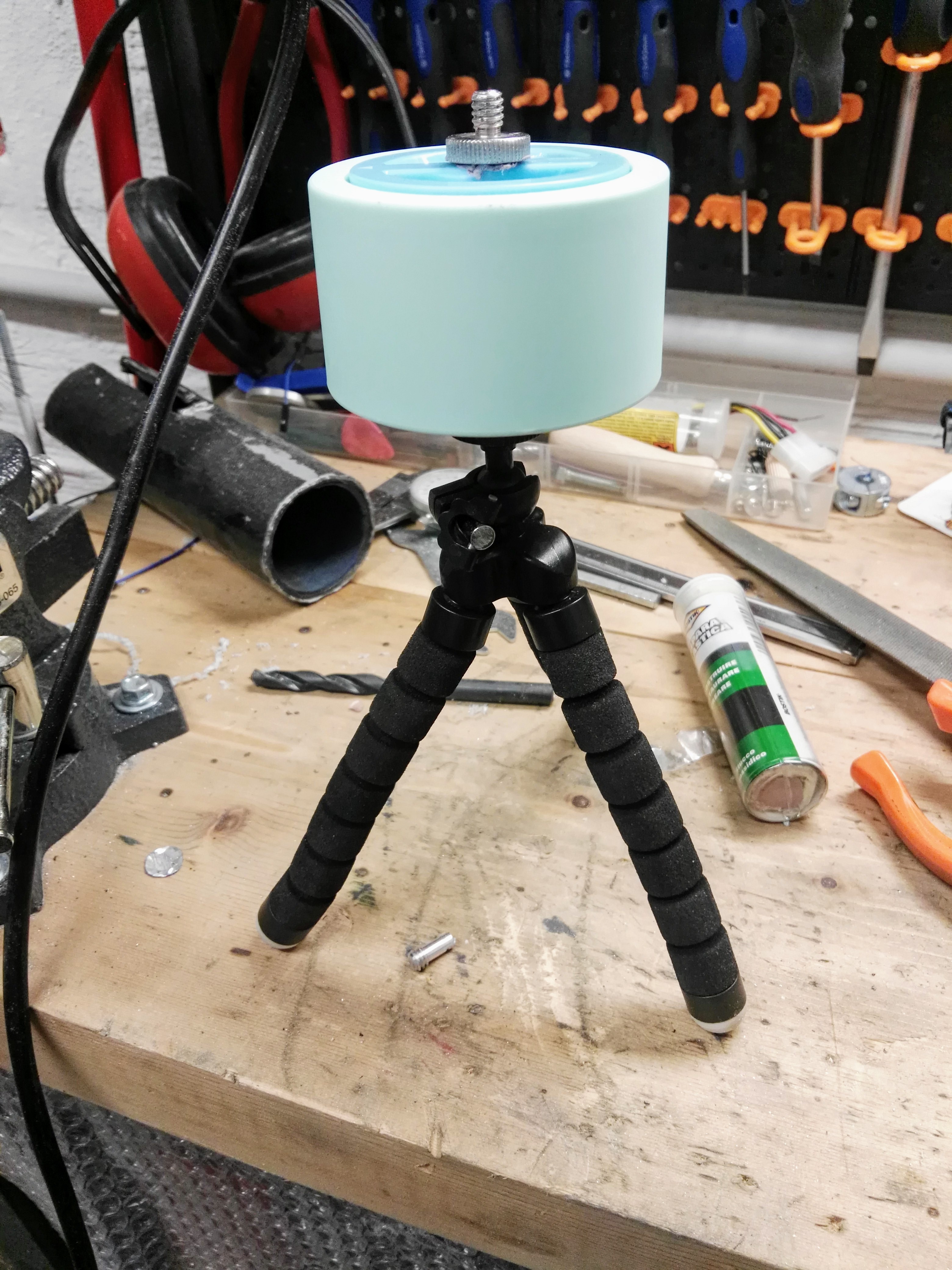

1. Put it on a tripod (gorillapod, normal tripod...).
2. Set Time Lapse Mode on the Action Cam.
3. I COMMEND TO SET 1 SHOT AT SECOND: if you set over 3-5sec the frames will be too much shifted.
4. Starts the time lapse.
5. Enjoy it.

YES, there is a limit... he rotate in only one direction, but the appropriate adapters you can reverse the timer (upside down) and change the rotation.
