How to Build a Perry the Platypus Inaction Figure

Perry the Platypus Inaction Figure is a wooden toy that is modelled after Perry (Disney cartoon characters - Phineas and Ferb's pet platypus).

In the episode Toy to the World, Phineas and Ferb design a toy "so stupidly simple, so basically bland, so idiotically uncomplicated, that it can do absolutely anything."

For my son's 6th birthday party we all made Inaction Figures, it was a lot of fun!!

Here's a step by step guide to make your own Perry. Go on and make a Perry the Platypus Inaction Figure. It does nothing!

You will need...

Wood (65mm x 45mm) for Perry's body - a length of 120mm
Wood (90mm x 10mm) for Perry's legs, bill and tail - a length of 250mm should be heaps
2 x Wooden plugs (19mm) for Perry's eyes
6 x Wood Screws (8ga x 25mm) for legs and attaching bill
Paint Brush & Paint - Green/Blue (for body), Orange/Brown (Tail), Yellow Brown (for legs, bill, tail detail) and White (for eyes) - a marker pen can be used for the pupils)
Wood Glue for attaching eyes and tail
Mitre Saw for cutting body to length
Router - you could use a chisel & saw instead
Jigsaw for cutting out legs, bill and tail
Drill for screw guide holes for legs and beak
Sandpaper
Tape Measure & Pencil
Screw Driver

Note on paint: Toys really should be painted with paint approved for children's toys - I just used normal test pots though, as this is the cheaper option.

Take your 65mm x 45mm length and using your mitre saw, cut to 120mm.  This will be Perry's body.

Using your router with a 10mm bit, cut a groove 10mm deep, 10mm below the top of the body. If you don't have a router, you can use a saw and a 10mm chisel.

You can cut out the insert for attaching the bill, with either a saw or by using a router (10mm deep by 20mm wide). The 'real' inaction figure doesn't have this insert, but I added this to aid attaching the bill with screws (easier for the children to assemble).

Draw Perry's tail on the 90mm x 10mm length of wood. The tail length is 80mm (10mm fits into the groove in Perry's body). The tail fans out slightly to around 80mm. Cut out the tail with the jigsaw.

Again on the 90mm x 10mm length of wood, draw Perry's bill. The bill is 75mm long, 55mm protrudes as 20mm fits in the insert for screwing onto the body - note curved front corners. Cut out the bill with the jigsaw.

Draw Perry's legs. The legs are around 35mm high, foot base 25mm, with the width of the leg around 20mm. Cut them out.

The children didn't have a bill support but for posterity's sake, I added one here. The bill support is around 20mm x 20mm with a slight concave curve and two straight edges at 90 degrees. I'll show you how to attach this in step 7.

Taking your sandpaper, sand off the rough & sharp edges ready for painting.

With a small bit (suitable for your screws), drill the leg guide holes (25mm from the base of the foot). Drill two guide holes for the bill screws (around 10mm in from its base). You can counter sink the holes using a larger bit in reverse (this helps the screws sit flush with the wood's surface).

I also marked where the legs will be screwed into the body, 15mm high from the bottom, 35mm in from the front, 20-25mm in from the back.

Screw Perry's bill on, then glue on his bill support (centred, flush with his face). Wipe away any excess wood glue. After the glue has set, remove the bill, ready for painting.

Paint Perry's parts and leave them to dry. Green/Blue (his body), Orange/Brown (his tail), Yellow Brown (his legs, bill & tail detail) and White (for his eyes).

Since I have attached the bill using an insert in the body, you may want to paint that part of the bill, body coloured (the first 20mm in from the base of the bill - I liked the new look so kept it bill coloured). You can use a marker pen for colouring the pupils.  The tail pattern/texture can be painted on with the bill/feet colour.

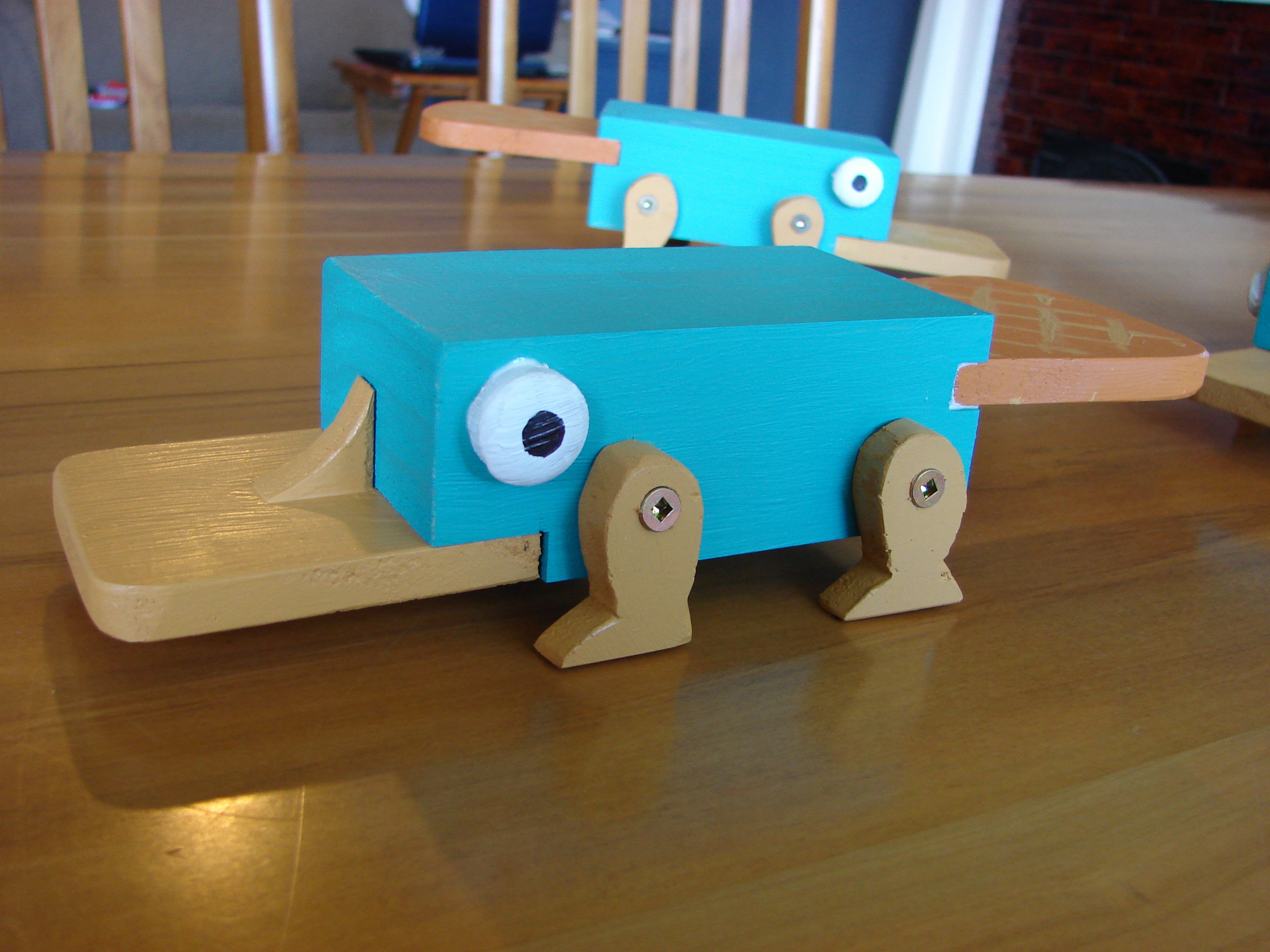

So this is where the kids got to have fun putting their inaction figures together. They screwed on the bill, glued and slotted the tail, screwed on the feet and glued on the eyes. A little tip here would be to have them name their Perry (with a marker pen), as they look very much alike!

I hope this instructable has inspired you to a little inactivity of your own.
