0SlingShot

OslingShot is circular design slingshot that can be 3D printed at home. Its cheap to make and easy to put together.

• 3D printer
• PLA
• Scissors
• Ruler
• Philip Screw driver
• 1 punch balloons
• 1 round head bold 1/4 in-20x1
• 1 wing nut 1/4 in-20

• Follow the link to the tinkercad page of the Oslingshot bellow
• https://www.tinkercad.com/dashboard?type=tinkercad...

• or upload stl files from attachments
• 3D print parts for the slingshot

1. get your punch balloon
2. measure 5 inches from tight off section
3. cut along the dotted line as shown in the image

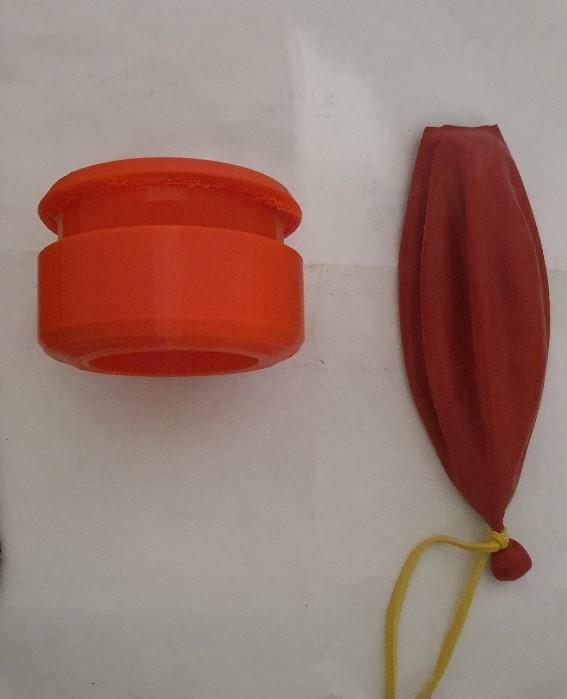

1. get your main body of the sling and cut punch balloon

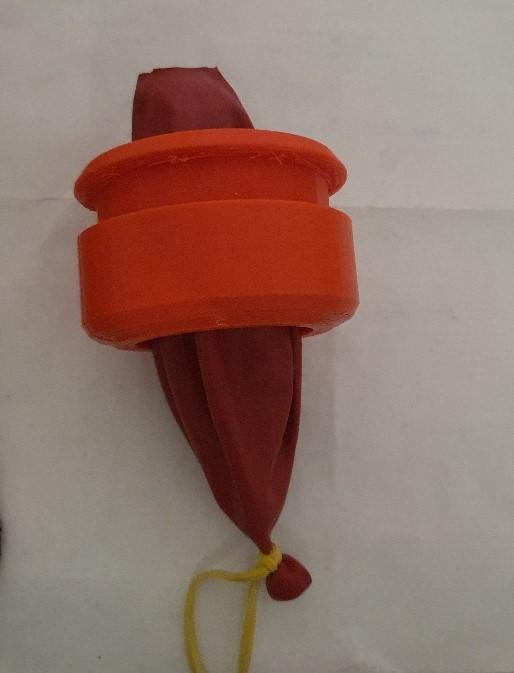

2. insert balloon thru big hole of the main body of the slingshot
3. stretch balloon section where you made a cut and pull balloon around the small lip of the main body of the slingshot
4. stretchy balloon on to the cut out section where holding ring can securely hold balloon in place
5. place holding ring in the cut out section for the main part of the slingshot ( might need to slightly stretch the holding ring)
6. align holding ring so it right on top of the balloon
7. use 1/4 inch -20x1 inch bolt and wingnut to secure holding ring around the main part of the slingshot

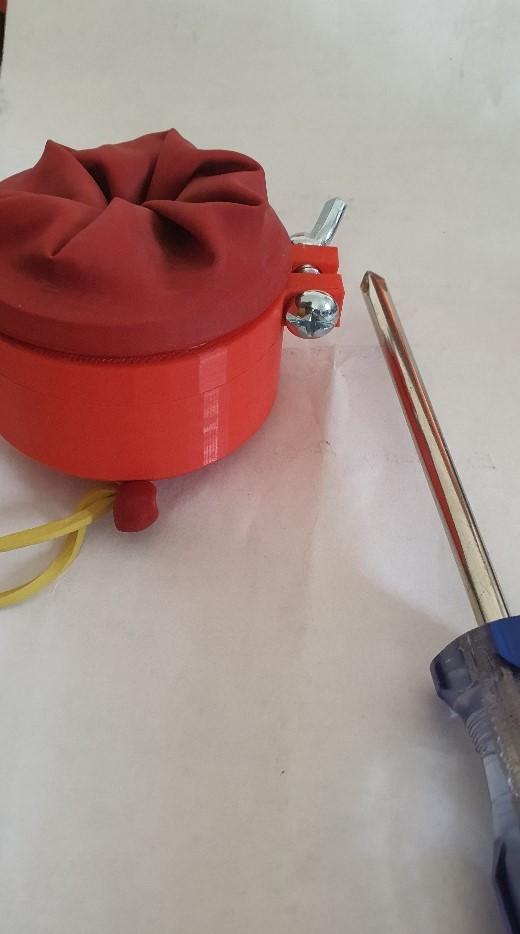

1. After assembling your slingshot make sure you tighten your bolt using philip screwdriver and holding down wing nut until its secured
2. For ammo you can use anything that small enough to fit in your punch balloon.( marbles, nuts, pebbles and etc.)
3. To use Oslingshot you use one of the hands to to hold the main slingshot part and use the rubberband to pull back and Release!
4. Caution: DON'T PULL BACK BALLOON UNTIL YOU ARE READY TO SHOOT! BEWARE OF YOUR SURANDINGS AND DON'T AIM AT SOMETHING YOU ARE NOT WANTING TO SHOOT! BE SAFE.
