Hello! This is a walking and running frog robot
Robot has only one eye.
A robot is easy to do.
It is especially loved by children.
It looks very funny and interesting
I hope you like it. If you like it. Please vote for me
Thanks. Let's make it :))
Note : You can watch the video to understand the steps to do!
You Need
![dsadsada.jpg](/proxy/?url=https://content.instructables.com/FFA/EE01/K8OOAY2P/FFAEE01K8OOAY2P.jpg&filename=dsadsada.jpg)

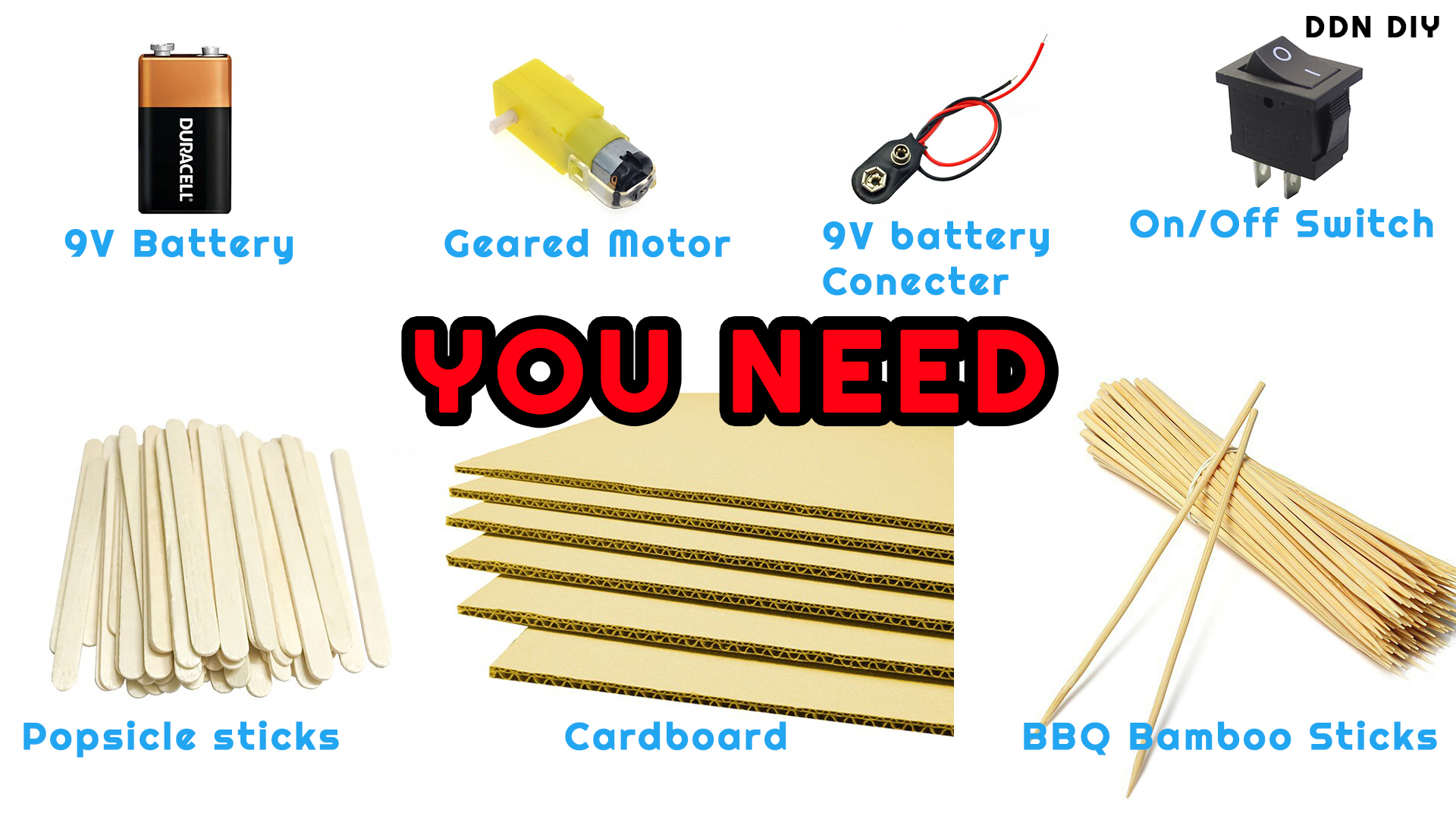

👉 You need:
- Cardboard
- Ice-cream stick
- BBQ bamboo stick
- On/Off Switch
- 9V Battery & Battery Connector
👉 Cardboard Measurement:
=====================
(cm = centimeter)
Triangle : 15cm x 7.5cm = 4 Pieces
15cm x 7.5cm = 1 Pieces
15,5cm x 7,5cm = 2 Pieces
Circle R = 2.5cm = 2 Pieces
R = 1cm = 1 Pieces
Prepare
![cua.mp4_snapshot_01.04_[2020.04.04_20.49.01].png](/proxy/?url=https://content.instructables.com/FUQ/DA0Y/K8OOAHL0/FUQDA0YK8OOAHL0.png&filename=cua.mp4_snapshot_01.04_[2020.04.04_20.49.01].png)
![cua.mp4_snapshot_01.06_[2020.04.04_20.49.17].png](/proxy/?url=https://content.instructables.com/FSI/3GWV/K8OOAHMO/FSI3GWVK8OOAHMO.png&filename=cua.mp4_snapshot_01.06_[2020.04.04_20.49.17].png)
![cua.mp4_snapshot_01.07_[2020.04.04_20.49.19].png](/proxy/?url=https://content.instructables.com/FL0/UC47/K8OOAHNM/FL0UC47K8OOAHNM.png&filename=cua.mp4_snapshot_01.07_[2020.04.04_20.49.19].png)
![cua.mp4_snapshot_01.10_[2020.04.04_20.49.26].png](/proxy/?url=https://content.instructables.com/FKS/0VIH/K8OOAHOL/FKS0VIHK8OOAHOL.png&filename=cua.mp4_snapshot_01.10_[2020.04.04_20.49.26].png)

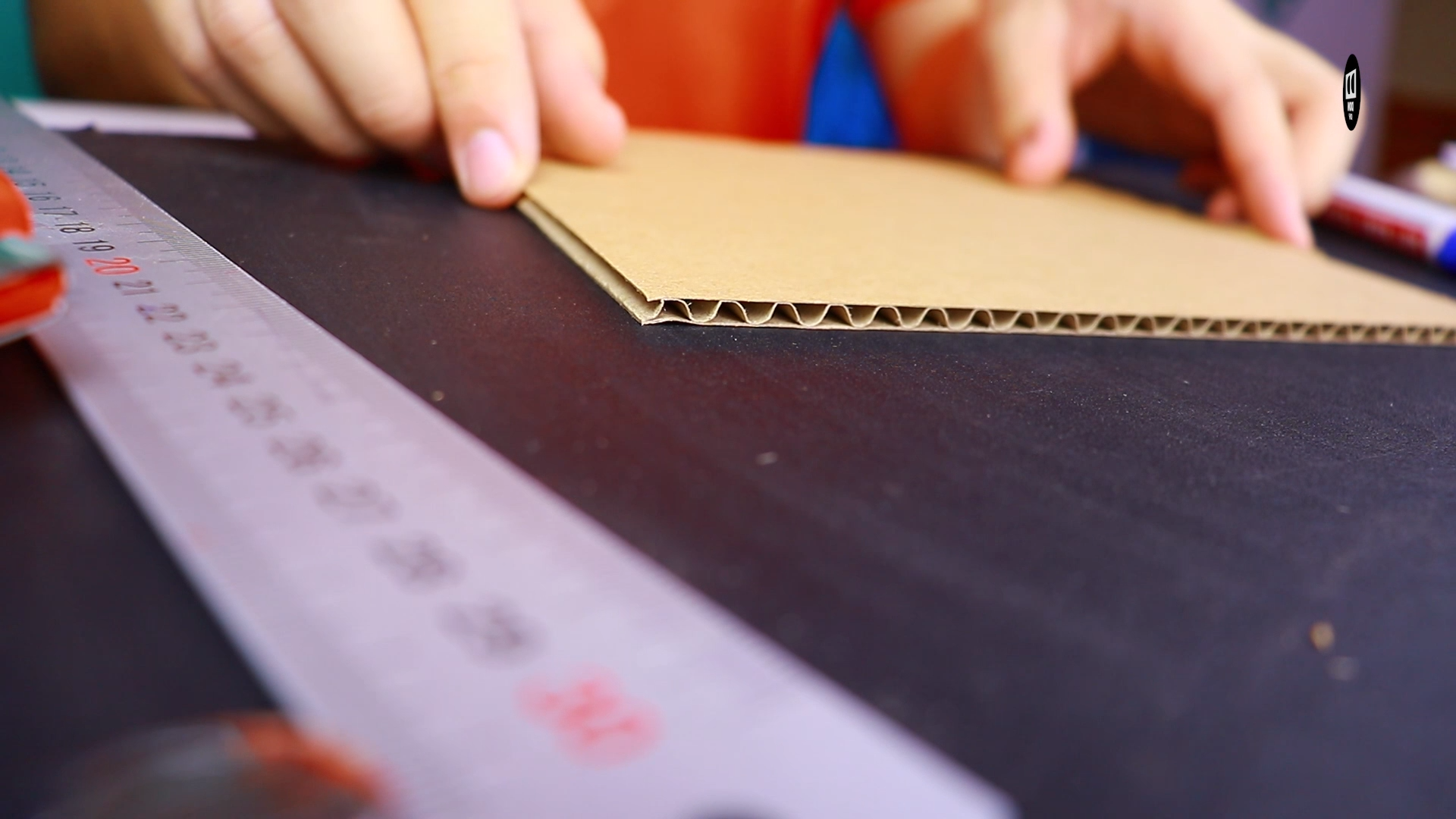

Prepare a cardboard sheet, pens, paper knives and rulers
Draw a triangle whose hypotenuse is 15 cm and the other side 7.5cm
CUT
![cua.mp4_snapshot_01.19_[2020.04.04_20.49.57].png](/proxy/?url=https://content.instructables.com/FMA/TY30/K8OOAHPM/FMATY30K8OOAHPM.png&filename=cua.mp4_snapshot_01.19_[2020.04.04_20.49.57].png)
![cua.mp4_snapshot_01.17_[2020.04.04_20.49.53].png](/proxy/?url=https://content.instructables.com/FDJ/85H2/K8OOAHOM/FDJ85H2K8OOAHOM.png&filename=cua.mp4_snapshot_01.17_[2020.04.04_20.49.53].png)
![cua.mp4_snapshot_01.24_[2020.04.04_20.50.09].png](/proxy/?url=https://content.instructables.com/F3A/P2XT/K8OOAHQO/F3AP2XTK8OOAHQO.png&filename=cua.mp4_snapshot_01.24_[2020.04.04_20.50.09].png)
After you're done drawing, cut it
You need to make 4 such triangles
Prepare a Rectangular Cadboard 15cm X 7,5cm
![cua.mp4_snapshot_01.26_[2020.04.04_20.50.12].png](/proxy/?url=https://content.instructables.com/FSC/OG7D/K8OOAHQP/FSCOG7DK8OOAHQP.png&filename=cua.mp4_snapshot_01.26_[2020.04.04_20.50.12].png)
![cua.mp4_snapshot_01.29_[2020.04.04_20.50.18].png](/proxy/?url=https://content.instructables.com/FKM/WMST/K8OOAHRO/FKMWMSTK8OOAHRO.png&filename=cua.mp4_snapshot_01.29_[2020.04.04_20.50.18].png)
![cua.mp4_snapshot_01.31_[2020.04.04_20.50.21].png](/proxy/?url=https://content.instructables.com/F0G/9Q5G/K8OOAHSM/F0G9Q5GK8OOAHSM.png&filename=cua.mp4_snapshot_01.31_[2020.04.04_20.50.21].png)
![cua.mp4_snapshot_01.32_[2020.04.04_20.50.24].png](/proxy/?url=https://content.instructables.com/FE8/Q8MG/K8OOAHTK/FE8Q8MGK8OOAHTK.png&filename=cua.mp4_snapshot_01.32_[2020.04.04_20.50.24].png)

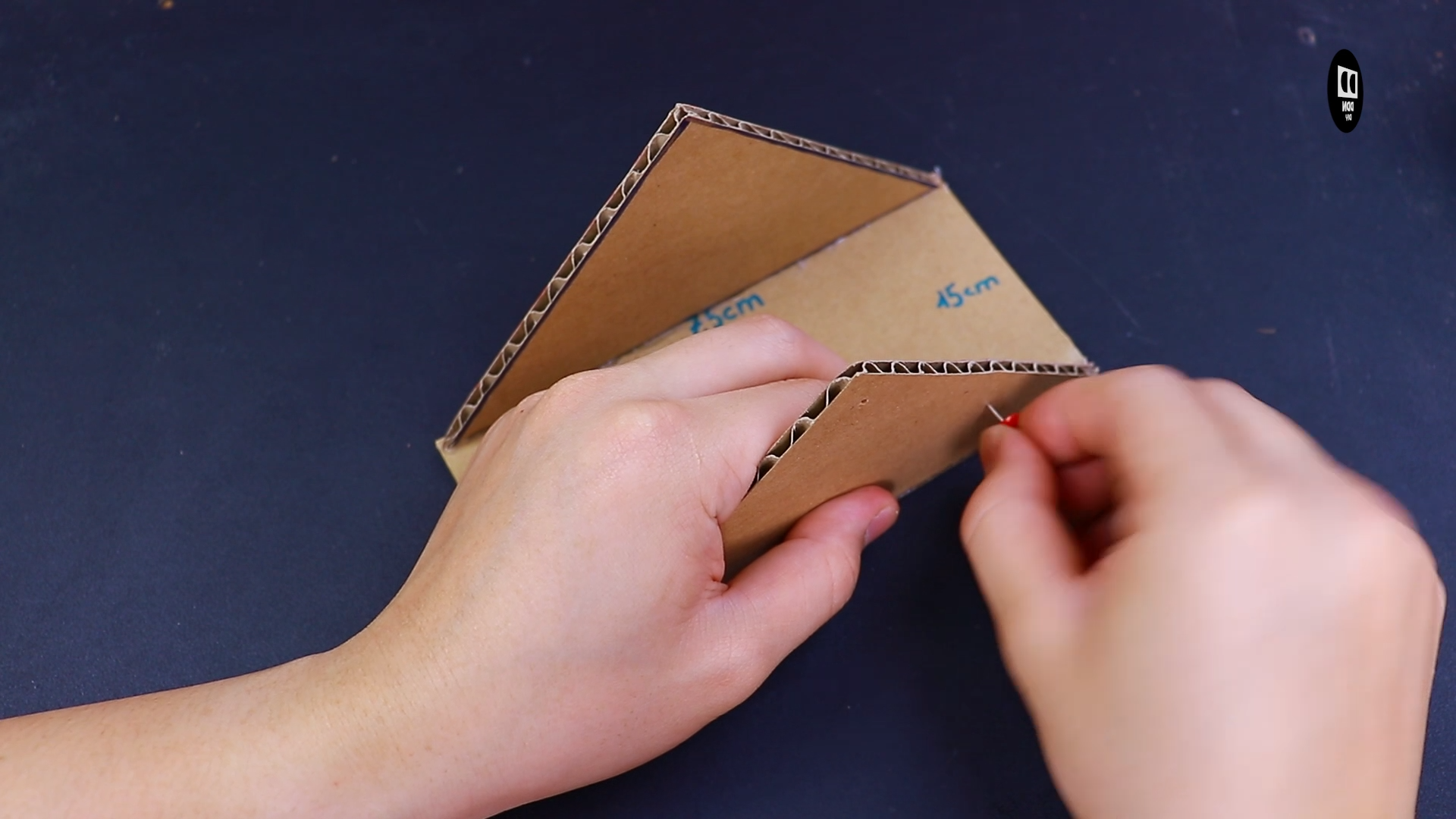

Place a rectangular cover of 15cm x 7.5cm
Place the triangle cardboard on the rectangular cardboard
And permanent it with hot Glue
Draw Circle
![cua.mp4_snapshot_01.37_[2020.04.04_20.50.31].png](/proxy/?url=https://content.instructables.com/FX6/Y927/K8OOAHUJ/FX6Y927K8OOAHUJ.png&filename=cua.mp4_snapshot_01.37_[2020.04.04_20.50.31].png)
![cua.mp4_snapshot_01.47_[2020.04.04_20.50.38].png](/proxy/?url=https://content.instructables.com/FLE/H09I/K8OOAHVI/FLEH09IK8OOAHVI.png&filename=cua.mp4_snapshot_01.47_[2020.04.04_20.50.38].png)
![cua.mp4_snapshot_01.50_[2020.04.04_20.50.54].png](/proxy/?url=https://content.instructables.com/FMF/V3QW/K8OOAHVJ/FMFV3QWK8OOAHVJ.png&filename=cua.mp4_snapshot_01.50_[2020.04.04_20.50.54].png)
![cua.mp4_snapshot_02.06_[2020.04.04_20.51.08].png](/proxy/?url=https://content.instructables.com/FWA/BZSE/K8OOAHXU/FWABZSEK8OOAHXU.png&filename=cua.mp4_snapshot_02.06_[2020.04.04_20.51.08].png)

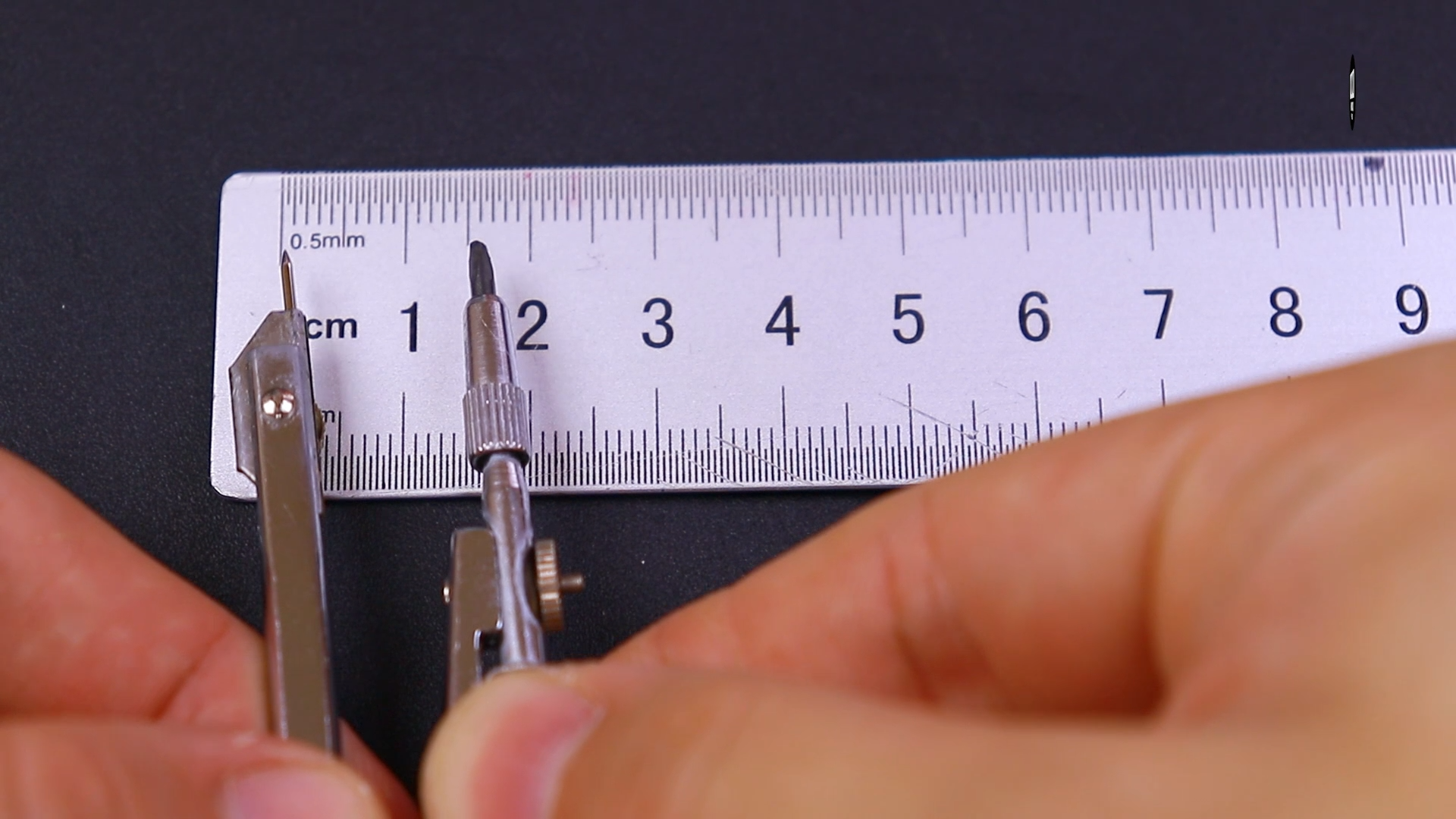

Draw two circles with a radius of 2.5 cm
And a circle with a radius of 1.5cm
And Combining to create gears ( Fourth Photo)
Make Small Holes
![cua.mp4_snapshot_02.11_[2020.04.04_20.51.34].png](/proxy/?url=https://content.instructables.com/FV5/MXIF/K8OOAI1U/FV5MXIFK8OOAI1U.png&filename=cua.mp4_snapshot_02.11_[2020.04.04_20.51.34].png)
![cua.mp4_snapshot_02.08_[2020.04.04_20.51.12].png](/proxy/?url=https://content.instructables.com/F31/FQJG/K8OOAI1Q/F31FQJGK8OOAI1Q.png&filename=cua.mp4_snapshot_02.08_[2020.04.04_20.51.12].png)
![cua.mp4_snapshot_02.21_[2020.04.04_20.51.54].png](/proxy/?url=https://content.instructables.com/F4K/390M/K8OOAI2U/F4K390MK8OOAI2U.png&filename=cua.mp4_snapshot_02.21_[2020.04.04_20.51.54].png)
Make small holes to oblique the toothpicks
Put the gear and a rubber band in
Use a Small Plumbing
![cua.mp4_snapshot_02.29_[2020.04.04_20.52.21].png](/proxy/?url=https://content.instructables.com/FSY/KGWN/K8OOAI70/FSYKGWNK8OOAI70.png&filename=cua.mp4_snapshot_02.29_[2020.04.04_20.52.21].png)
![cua.mp4_snapshot_02.31_[2020.04.04_20.52.32].png](/proxy/?url=https://content.instructables.com/FQ2/EBIJ/K8OOAI73/FQ2EBIJK8OOAI73.png&filename=cua.mp4_snapshot_02.31_[2020.04.04_20.52.32].png)
Use a small plumbing
You need to make it for the remaining toothpicks
Prepare 6 Ice Cream Sticks
![cua.mp4_snapshot_02.34_[2020.04.04_20.52.43].png](/proxy/?url=https://content.instructables.com/FNO/KKWN/K8OOB160/FNOKKWNK8OOB160.png&filename=cua.mp4_snapshot_02.34_[2020.04.04_20.52.43].png)
![cua.mp4_snapshot_02.51_[2020.04.04_20.52.56].png](/proxy/?url=https://content.instructables.com/F6X/PRA2/K8OOB163/F6XPRA2K8OOB163.png&filename=cua.mp4_snapshot_02.51_[2020.04.04_20.52.56].png)
![cua.mp4_snapshot_03.06_[2020.04.04_20.53.03].png](/proxy/?url=https://content.instructables.com/FMA/F7FC/K8OOB164/FMAF7FCK8OOB164.png&filename=cua.mp4_snapshot_03.06_[2020.04.04_20.53.03].png)
Prepare 6 ice cream sticks with a length of 4.5 cm
Create 2 holes at the 2 ends ( Second Photo)
Mechanism of Action
![cua.mp4_snapshot_03.09_[2020.04.04_20.53.08].png](/proxy/?url=https://content.instructables.com/FGF/ULAN/K8OOAIFM/FGFULANK8OOAIFM.png&filename=cua.mp4_snapshot_03.09_[2020.04.04_20.53.08].png)
![cua.mp4_snapshot_03.23_[2020.04.04_20.53.28].png](/proxy/?url=https://content.instructables.com/F9O/IOA6/K8OOAIGM/F9OIOA6K8OOAIGM.png&filename=cua.mp4_snapshot_03.23_[2020.04.04_20.53.28].png)
![cua.mp4_snapshot_03.18_[2020.04.04_20.53.20].png](/proxy/?url=https://content.instructables.com/FVA/AQ1F/K8OOAIGK/FVAAQ1FK8OOAIGK.png&filename=cua.mp4_snapshot_03.18_[2020.04.04_20.53.20].png)

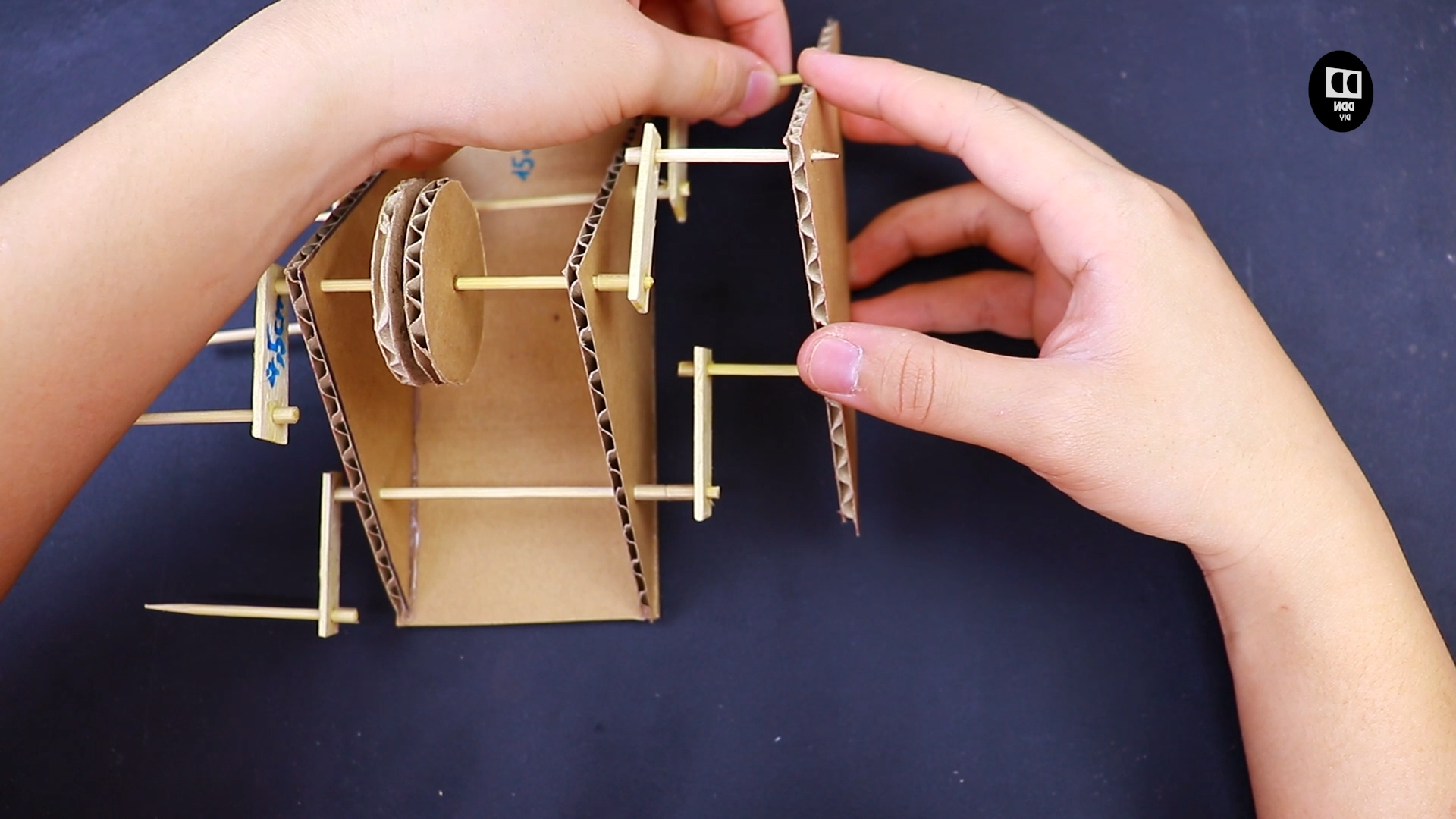

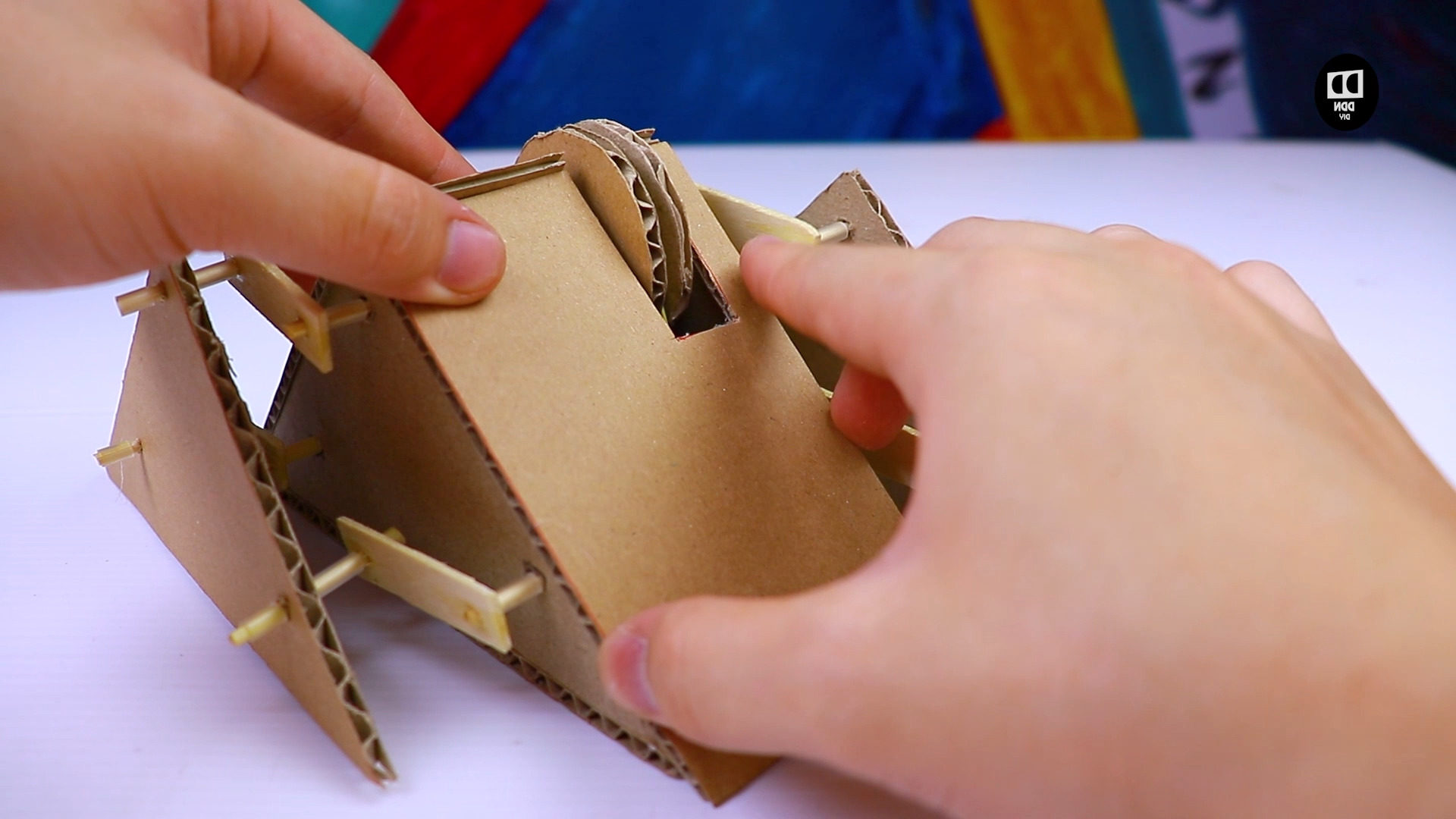

Mechanism of action (first image and second image)
Attach operation mechanism to the robot
Attention
![cua.mp4_snapshot_03.42_[2020.04.04_20.53.52].png](/proxy/?url=https://content.instructables.com/FR5/S23O/K8OOAIN7/FR5S23OK8OOAIN7.png&filename=cua.mp4_snapshot_03.42_[2020.04.04_20.53.52].png)
![cua.mp4_snapshot_03.51_[2020.04.04_20.55.40].png](/proxy/?url=https://content.instructables.com/FL8/IK75/K8OOAIO7/FL8IK75K8OOAIO7.png&filename=cua.mp4_snapshot_03.51_[2020.04.04_20.55.40].png)

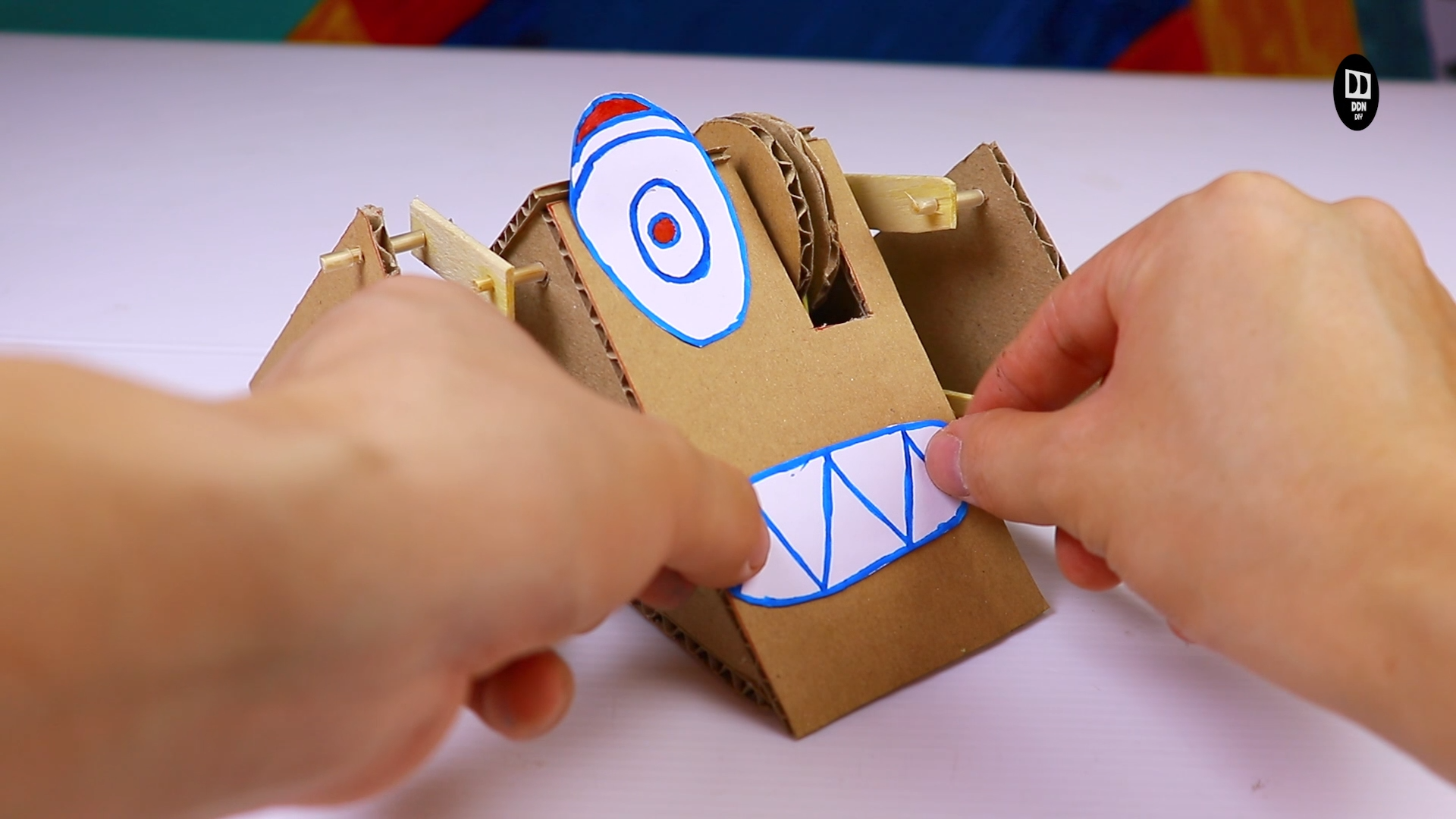

Pay attention to the direction my hand is rotating (first image)
Hand to rotate the left and right will be opposite
The operating mechanism of the two robot sides must be different. if the other side turns left then this side has to turn right
NOTE: You should watch the Video to better understand (Stating from the 3rd minute 03:24 - 03:52)
2 Remaining Cardboard Sheets
![cua.mp4_snapshot_03.59_[2020.04.04_20.56.34].png](/proxy/?url=https://content.instructables.com/FHL/MTY1/K8OOAIOX/FHLMTY1K8OOAIOX.png&filename=cua.mp4_snapshot_03.59_[2020.04.04_20.56.34].png)
![cua.mp4_snapshot_04.08_[2020.04.04_20.56.46].png](/proxy/?url=https://content.instructables.com/FH2/UAM6/K8OOAIPV/FH2UAM6K8OOAIPV.png&filename=cua.mp4_snapshot_04.08_[2020.04.04_20.56.46].png)
![cua.mp4_snapshot_04.10_[2020.04.04_20.56.50].png](/proxy/?url=https://content.instructables.com/FUW/HR0D/K8OOAIQT/FUWHR0DK8OOAIQT.png&filename=cua.mp4_snapshot_04.10_[2020.04.04_20.56.50].png)
![cua.mp4_snapshot_04.16_[2020.04.04_20.57.01].png](/proxy/?url=https://content.instructables.com/F1B/WY0E/K8OOAIS1/F1BWY0EK8OOAIS1.png&filename=cua.mp4_snapshot_04.16_[2020.04.04_20.57.01].png)
![cua.mp4_snapshot_04.19_[2020.04.04_20.57.05].png](/proxy/?url=https://content.instructables.com/FU3/BSKJ/K8OOAITJ/FU3BSKJK8OOAITJ.png&filename=cua.mp4_snapshot_04.19_[2020.04.04_20.57.05].png)
2 remaining cardboard sheets
Mark the touch point ( Second Photo)
And Attach frog legs ( Third Photo)
Use Motor and Two Small Gears
![cua.mp4_snapshot_04.26_[2020.04.04_20.57.10].png](/proxy/?url=https://content.instructables.com/FYB/Y6AL/K8OOAIWQ/FYBY6ALK8OOAIWQ.png&filename=cua.mp4_snapshot_04.26_[2020.04.04_20.57.10].png)
![cua.mp4_snapshot_04.35_[2020.04.04_20.57.25].png](/proxy/?url=https://content.instructables.com/FRM/0QNK/K8OOAIZK/FRM0QNKK8OOAIZK.png&filename=cua.mp4_snapshot_04.35_[2020.04.04_20.57.25].png)

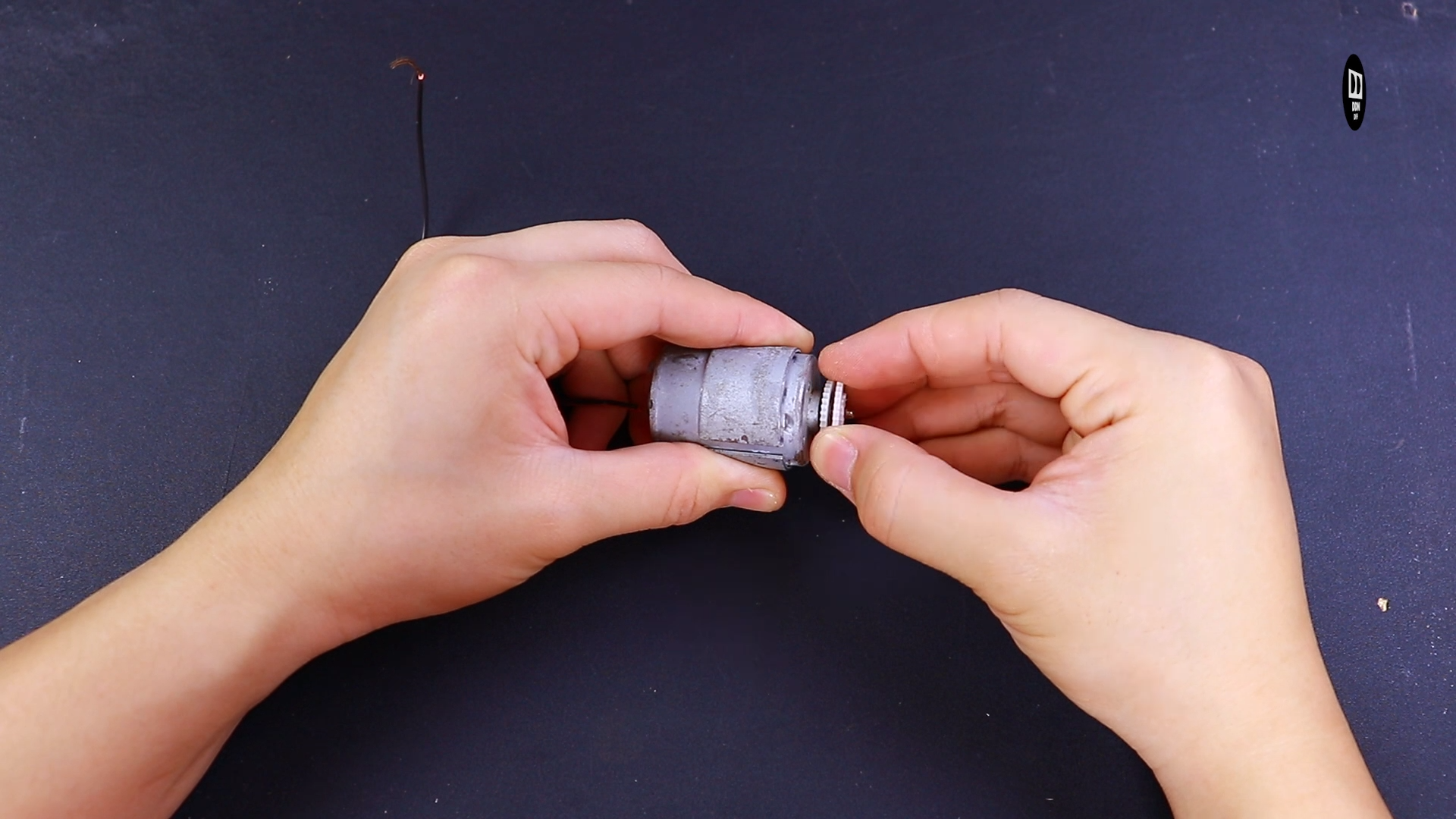

Use motor and two small gears
Look closely at the electrical circuit diagram for assembly
Please make sure to connect the power cord firmly to avoid rework
Prepare Two Cardboard
![cua.mp4_snapshot_04.37_[2020.04.04_20.57.27].png](/proxy/?url=https://content.instructables.com/FUS/D4BU/K8OOAJ1Z/FUSD4BUK8OOAJ1Z.png&filename=cua.mp4_snapshot_04.37_[2020.04.04_20.57.27].png)
![cua.mp4_snapshot_04.42_[2020.04.04_20.57.41].png](/proxy/?url=https://content.instructables.com/FXE/SZVX/K8OOAJ23/FXESZVXK8OOAJ23.png&filename=cua.mp4_snapshot_04.42_[2020.04.04_20.57.41].png)
![cua.mp4_snapshot_04.46_[2020.04.04_20.57.53].png](/proxy/?url=https://content.instructables.com/FTS/5KFE/K8OOAJ2N/FTS5KFEK8OOAJ2N.png&filename=cua.mp4_snapshot_04.46_[2020.04.04_20.57.53].png)
![cua.mp4_snapshot_04.54_[2020.04.04_20.58.05].png](/proxy/?url=https://content.instructables.com/F8X/9Z6A/K8OOAJ5F/F8X9Z6AK8OOAJ5F.png&filename=cua.mp4_snapshot_04.54_[2020.04.04_20.58.05].png)
![cua.mp4_snapshot_04.57_[2020.04.04_20.58.36].png](/proxy/?url=https://content.instructables.com/FKA/86SG/K8OOAJCS/FKA86SGK8OOAJCS.png&filename=cua.mp4_snapshot_04.57_[2020.04.04_20.58.36].png)
Prepare two cardboard boxes measuring 15.5cm x 7.5cm and have a hole

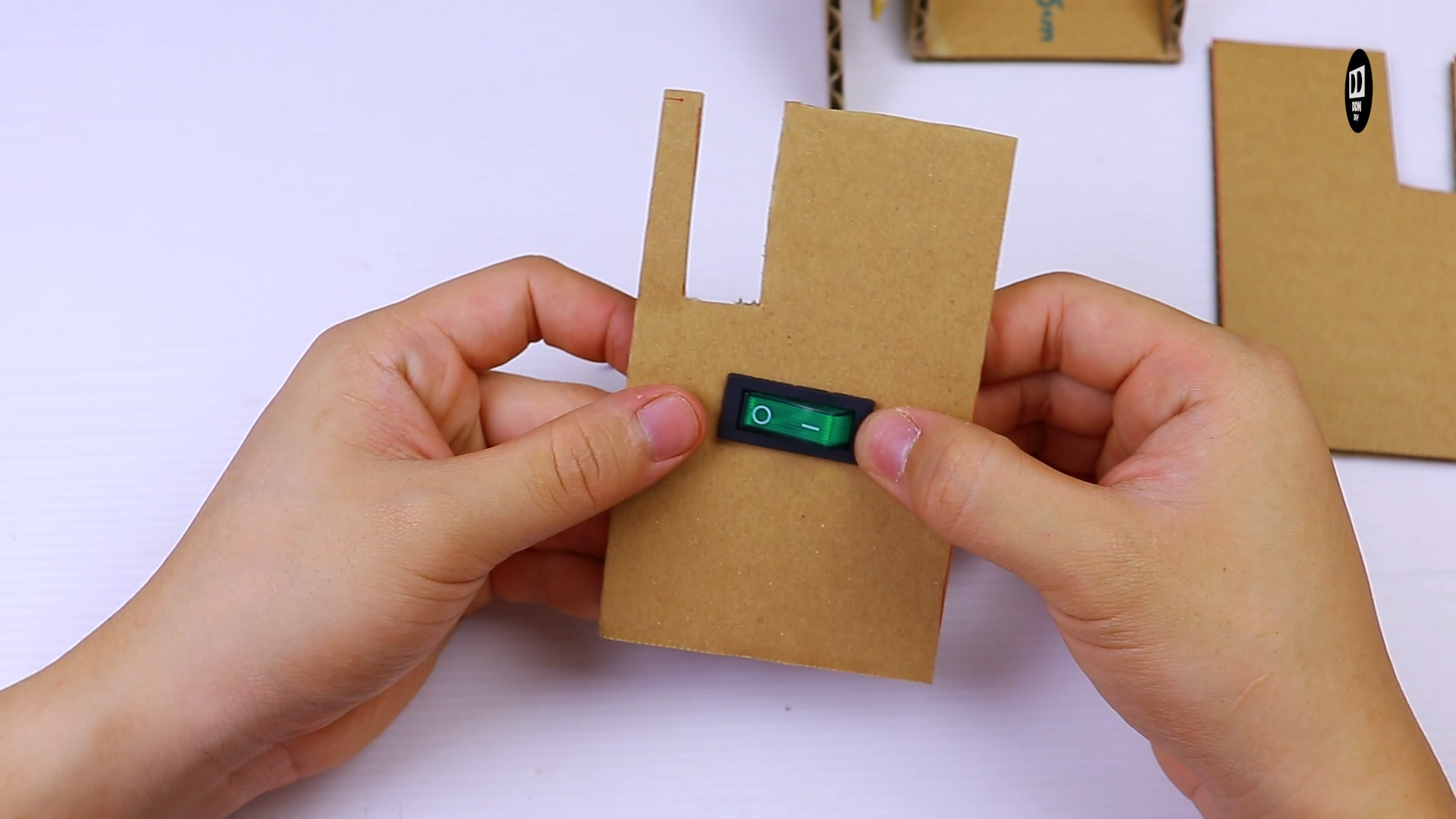

Make a moderate hole to place the switch ( Second photo)
Put it all in and take the next step (Third photo)
Connect the elastic band together (Fourth photo)
Decorate
![cua.mp4_snapshot_05.02_[2020.04.04_20.58.51].png](/proxy/?url=https://content.instructables.com/FJA/JNHQ/K8OOAJG0/FJAJNHQK8OOAJG0.png&filename=cua.mp4_snapshot_05.02_[2020.04.04_20.58.51].png)
![cua.mp4_snapshot_05.08_[2020.04.04_20.58.59].png](/proxy/?url=https://content.instructables.com/FHO/S5PP/K8OOAJGY/FHOS5PPK8OOAJGY.png&filename=cua.mp4_snapshot_05.08_[2020.04.04_20.58.59].png)
![cua.mp4_snapshot_05.13_[2020.04.04_20.59.14].png](/proxy/?url=https://content.instructables.com/FLS/RPCN/K8OOAJLX/FLSRPCNK8OOAJLX.png&filename=cua.mp4_snapshot_05.13_[2020.04.04_20.59.14].png)
![cua.mp4_snapshot_05.10_[2020.04.04_20.59.04].png](/proxy/?url=https://content.instructables.com/FZZ/3ZHX/K8OOAJKX/FZZ3ZHXK8OOAJKX.png&filename=cua.mp4_snapshot_05.10_[2020.04.04_20.59.04].png)
![MVI_3402.MP4_snapshot_00.00_[2020.04.04_20.47.46].png](/proxy/?url=https://content.instructables.com/FN0/8JVN/K8OOAJQN/FN08JVNK8OOAJQN.png&filename=MVI_3402.MP4_snapshot_00.00_[2020.04.04_20.47.46].png)

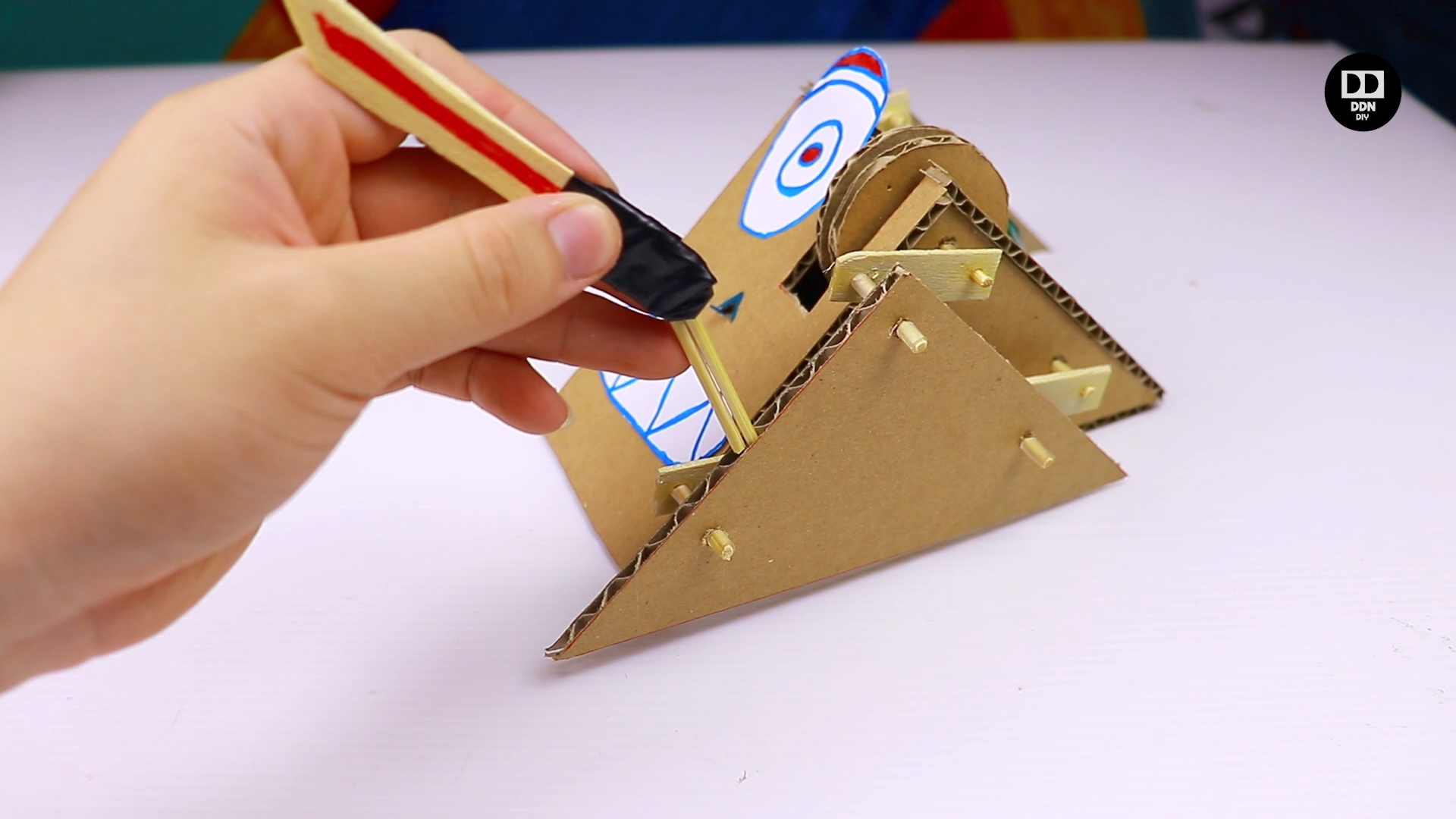

The final stage is to decorate it. Please decorate according to your preferences
A sword that can bring humor to a robot, or call it a fighting robot! haha :))

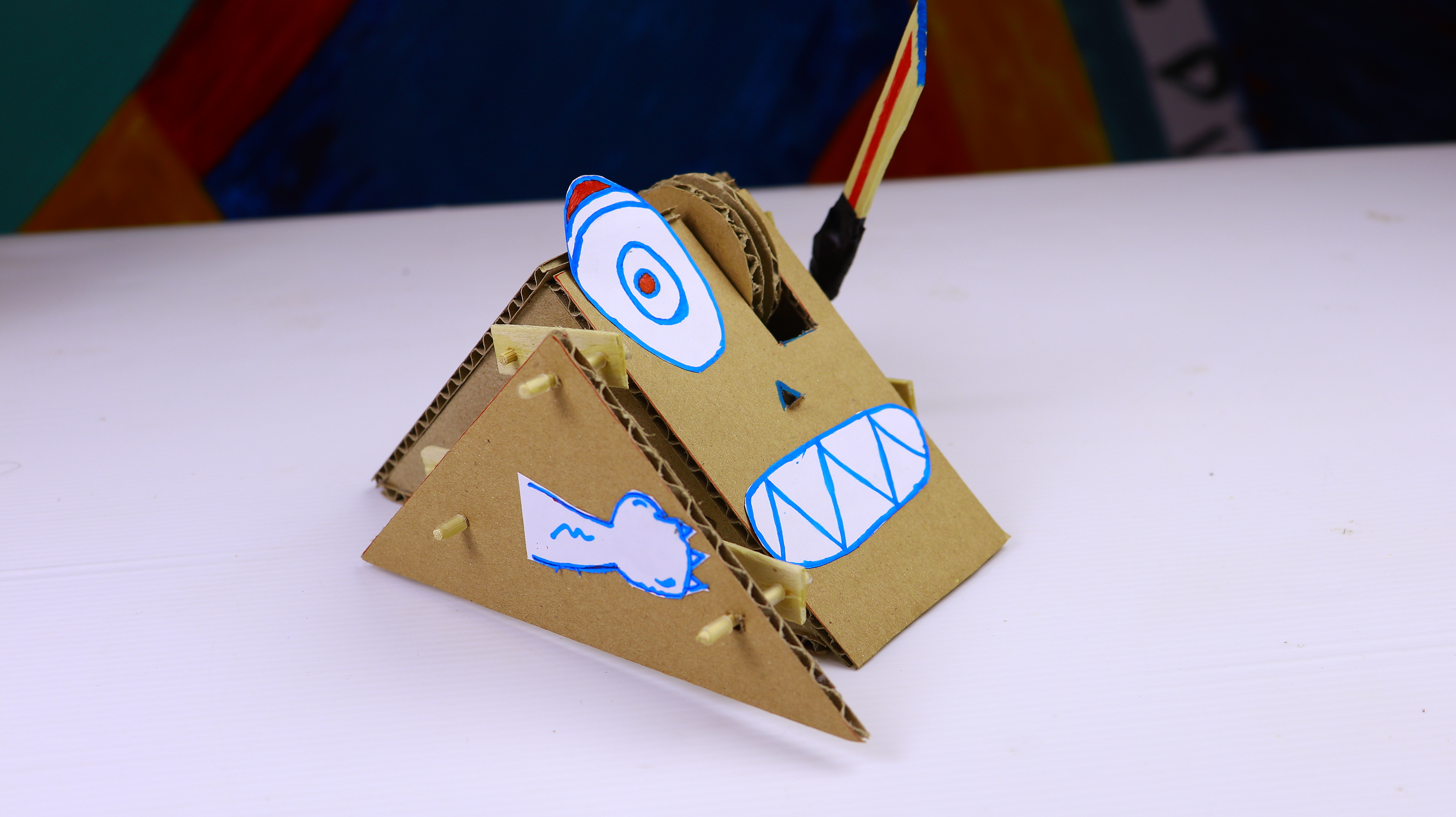

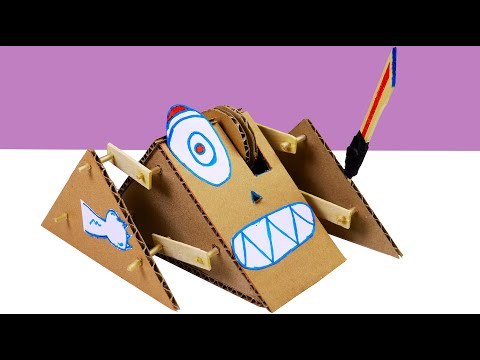

Finished Product. Let's See the Finished Product
![cua.mp4_snapshot_00.37_[2020.04.04_20.48.40].png](/proxy/?url=https://content.instructables.com/FXI/IQQC/K8OOAHKY/FXIIQQCK8OOAHKY.png&filename=cua.mp4_snapshot_00.37_[2020.04.04_20.48.40].png)
![How to make One-eyed Frog Robot from Cardboard](/proxy/?url=https://content.instructables.com/FL1/0LEX/K8OOB3MU/FL10LEXK8OOB3MU.jpg&filename=How to make One-eyed Frog Robot from Cardboard)
![cua.mp4_snapshot_00.28_[2020.04.04_20.48.17].png](/proxy/?url=https://content.instructables.com/FEE/TUUF/K8OOB3PW/FEETUUFK8OOB3PW.png&filename=cua.mp4_snapshot_00.28_[2020.04.04_20.48.17].png)
![sadsad.jpg](/proxy/?url=https://content.instructables.com/FWF/W6IZ/K8OOB3Q7/FWFW6IZK8OOB3Q7.jpg&filename=sadsad.jpg)
I hope you like it.
If you like this Robot. Vote to help me. Thank you vary much :)))
Thank you very much. Have a nice day ! :))))
